Flexible Multicore Cable

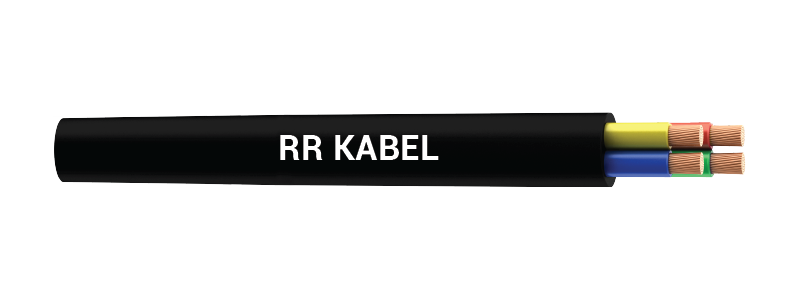

Ratnaflex Multicore Cable (IS 694)

• IS 694 marked, FIA/TAC
• Electrolytic grade annealed copper Class 5 as per IS 8130
• Black, grey & white

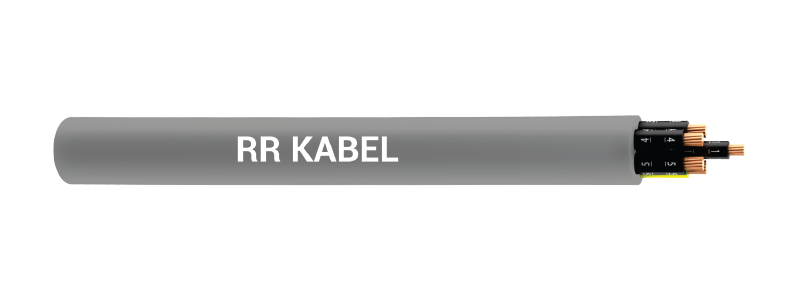

Control Cable (IS 694)

• IS 694 marked, FIA/TAC
• Electrolytic grade annealed copper Class-5 as per IS 8130, having uniform resistance properties
• All black colour cores with continous white numbering, gn-yl core on outer most layer for earth if applicable

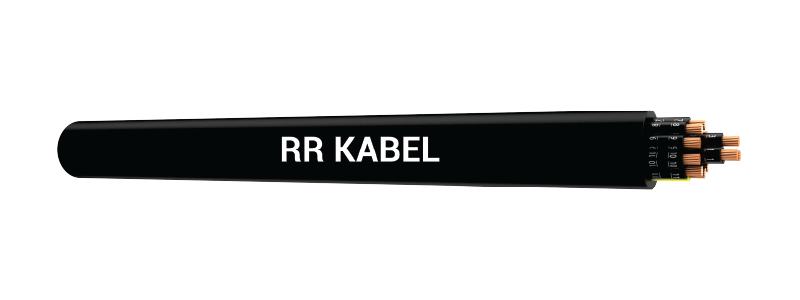

JZ-BLACK 0.6/1 KV

• Uo / U 0.6 / 1 kV
• Min. 20 GΩ x cm
• Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

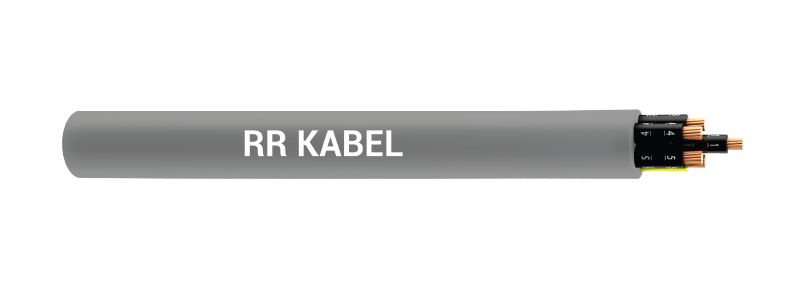

UL 2586

• UL-758 UL 2586
• 1000 Vac
• -30ºC to + 150 ºC

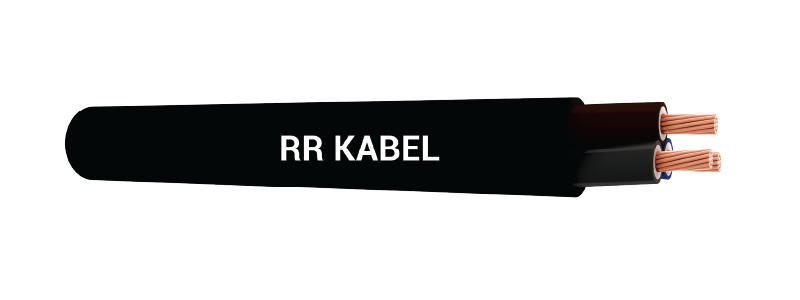

UL 2587

• Std. 758; Control cable of special – PVC to UL AWM; Style 2587 cores according to UL 1015
• 600V
• 3000V

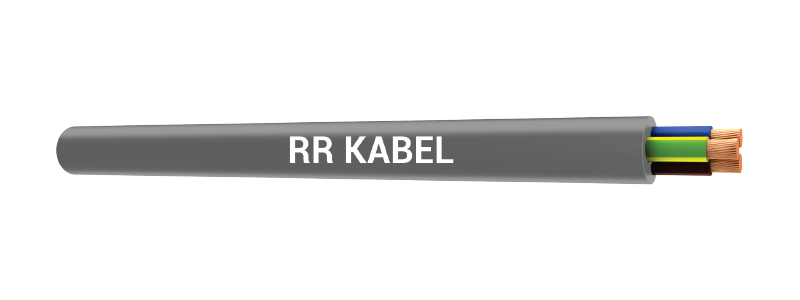

H03/H05VVH2-F & H03/H05VV-F

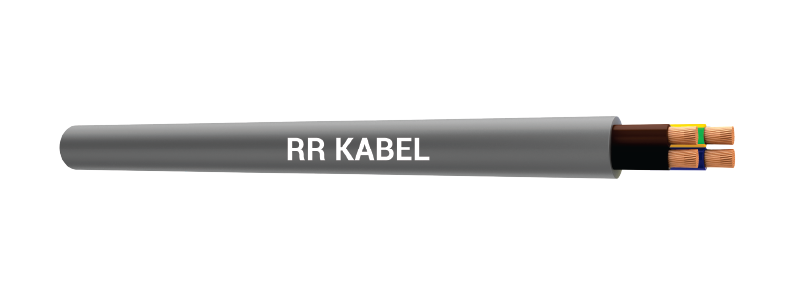

JB-750

• Uo/U 450/750V
• Min. 20 GΩ x cm
• Flexing -5°C to +70°C

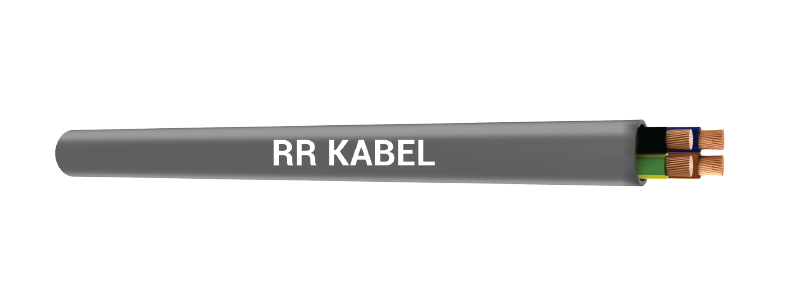

H03/H05V2V2H2-F & H03/H05V2V2-F

• 300 / 500V (H05V2V2H2-F / H05V2V2-F); 300 / 300V (H03V2V2H2-F / H03V2V2-F)
• Min. 20 GΩ x cm
• Flexing -5°C to +90°C / Fixed Installation -30°C to +90°C / Fixed Installation 5 x cable ø

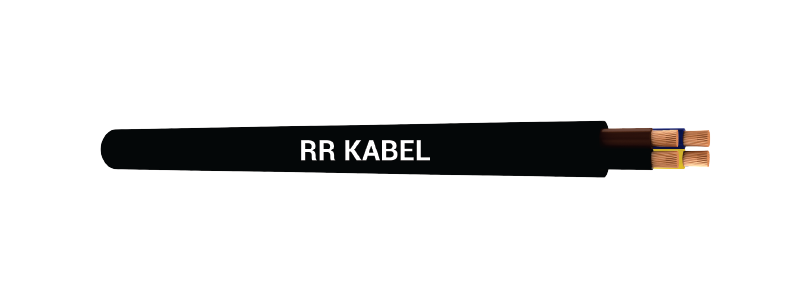

JB-BLACK 0.6/1 KV

• Uo / U 0.6 / 1 kV
• Min. 20 GΩ x cm
• Occasional flexing -5°C to +70°C. Fixed installation -30°C to +70°C

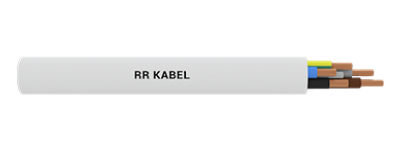

H05Z1Z1-F (318B)

• U / U 300/500 V
• Flexing -5°C to +70°C. Fixed Installation : -30°C to +70°C
• Flexing 7.5 x cable ø; Fixed installation 4 x cable ø
