Application
These cables are specifically designed to transmit complete video frequency with minimum distortion or attenuation for security and surveillance. This cable is offered in two variants viz., 4+1 and 3+1 CCTV Camera cable.
Properties
CCTV cables are designed to optimize the quality of video signals. The dense tin coated copper screen ensures complete elimination of EMI/RFI from video signals and also provides reduced DC resistance ground path. The multi stranded construction of video core offers better flexibility and reduced bending radius.

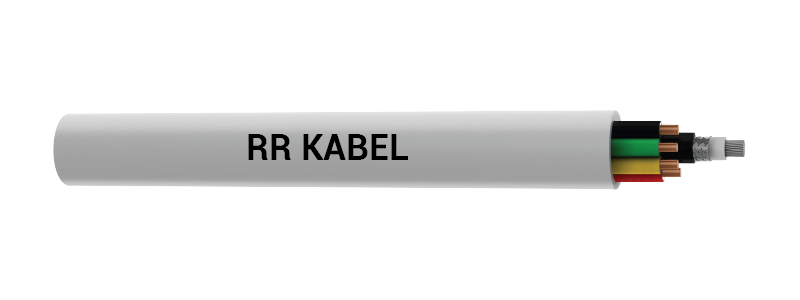

Cable Construction
- Screened Core for Video signal:
- Conductor: The central conductor is made of flexible fine wires tin coated electrolytic grade copper
- Insulation: The insulation provided over the conductor is with high dielectric strength and low capacitance
- Screen: Annealed tin coated copper braid screen, approx. 85% coverage
- Sheath: Black colored PVC
Power Cores
- Conductor: Solid electrolytic grade annealed plain copper, 0.5 mm
- Insulation: The insulation provided over the conductor is of high density polyethylene (HDPE)
- Sheath: PVC
- Cable Colour: White.
